| Measuring range X axis Y axis Z axis |
500-800 mm 600-1500 mm 400-600 mm |

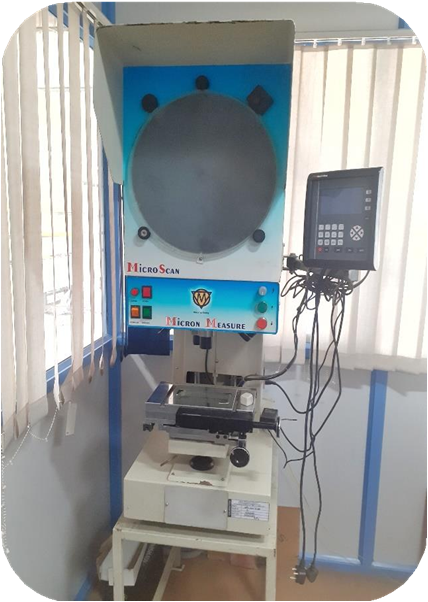

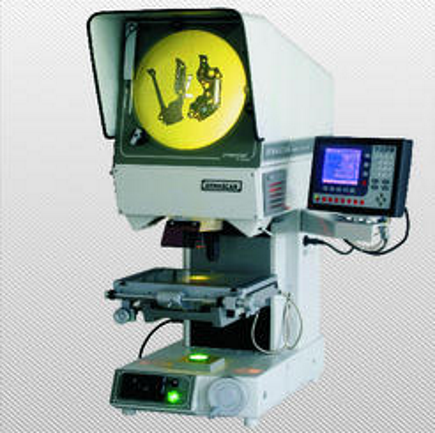

|---|---|
| Mode of operation | CNC |
| Max. Workpiece weight (kg) | 250 |
| *Accuracy MPEE (as per ISO 10360 - 2 with TP200 in µm) | 1.5 + L / 350 (Note - We also offer varaint of higher accuracy based on application) |
| Resolution (in µm) | 0.1 / 0.5 |
| Guidance | Air bearings on all axes |
| Linear Velocity | 400 mm/s |
| Volumetric Velocity | 700 mm/s |
| Measuring table (Material) | Granite |
| Probing option | TP 20, TP200, SP 25M, SP 80, Laser Scanner, PH 20, PH 20MT, Revo |
| Meauring Dimensions | |||
|---|---|---|---|
| Parameter | Linear | Angle | Manification |
| Resolution | 150X75mm | 0 to 360 degree | 20X |
| Resolution | 0.001mm | 36degree | |
| WEAR CHECK THREAD RING GAUGES | |||
|---|---|---|---|
| Sl No | MEASURING INSTRUMENT | MAKE | RANGE |
| 1 | Wear Check Thread Ring Gauge(GO & NOGO) | THREAD CONTROL SYSTEMS | M48x2-6H |
| 2 | Wear Check Thread Ring Gauge(GO & NOGO) | SIZE MASTERS | M16x2-6H |
| 3 | Wear Check Thread Ring Gauge(GO & NOGO) | THREAD CONTROL SYSTEMS | M30x2-6H |
| 4 | Wear Check Thread Ring Gauge(GO & NOGO) | THREAD CONTROL SYSTEMS | M14x2-6H |
| 5 | Wear Check Thread Ring Gauge(GO & NOGO) | THREAD CONTROL SYSTEMS | M8x1.25-6H |
| 6 | Wear Check Thread Ring Gauge(GO & NOGO) | MASTER METROLOGY | 1/8''X28bsp |
| 7 | Wear Check Thread Ring Gauge(GO & NOGO) | SIZE MASTERS | M8x1.25-6H |
| 8 | Wear Check Thread Ring Gauge(GO & NOGO) | SAI | M6x1-6H |
| 9 | Wear Check Thread Ring Gauge(GO & NOGO) | SIZE MASTERS | 3/4''-16UNF-2B |
| 10 | Wear Check Thread Ring Gauge(GO & NOGO) | SIZE MASTERS | G3/8''-19BSP |
| 11 | Wear Check Thread Ring Gauge(GO & NOGO) | SIZE MASTERS | M16x1-6H |
| 12 | Wear Check Thread Ring Gauge(GO & NOGO) | SIZE MASTERS | M10x1-6H |
| 13 | Wear Check Thread Ring Gauge(GO & NOGO) | TPG | M118x2-6H |
| 14 | Wear Check Thread Ring Gauge(GO & NOGO) | THREAD CONTROL SYSTEMS | M45x2-6H |
| 15 | Wear Check Thread Ring Gauge(GO & NOGO) | SIZE MASTERS | M52x3-6H |
| 16 | Wear Check Thread Ring Gauge(GO & NOGO) | THREAD GAUGE PRODUCTS | M65X1.5-6H |
| 17 | Wear Check Thread Ring Gauge(GO & NOGO) | THREAD GAUGE PRODUCTS | M6-1.0-6H |
| 18 | Wear Check Thread Ring Gauge(GO & NOGO) | THREAD GAUGE PRODUCTS | M94x1.5-6H |
| 19 | Wear Check Thread Ring Gauge(GO & NOGO) | THREAD GAUGE PRODUCTS | M60x3-6H |
| 20 | Wear Check Thread Ring Gauge(GO & NOGO) | THREAD GAUGE PRODUCTS | M85x3-6H |
| 21 | Wear Check Thread Ring Gauge(GO & NOGO) | THREAD CONTROL SYSTEMS | 1/8''x 27 NPSW |
| WEAR CHECK THREAD PLUG GAUGES | |||
|---|---|---|---|
| Sl No | MEASURING INSTRUMENT | MAKE | RANGE |
| 1 | Wear Check Thread Plug Gauge(GO & NOGO) | SIZE MASTERS | M100x2-6g |
| 2 | Wear Check Thread Plug Gauge(GO & NOGO) | SIZE MASTERS | M125x2-6g |
| 3 | Wear Check Thread Plug Gauge(GO & NOGO) | SIZE MASTERS | M105x2-6g |
| 4 | Wear Check Thread Plug Gauge(GO & NOGO) | SIZE MASTERS | M115x2-6g |
| 5 | Wear Check Thread Plug Gauge(GO & NOGO) | SIZE MASTERS | M120x2-6g |
| 6 | Wear Check Thread Plug Gauge(GO & NOGO) | THREAD GAUGE PRODUCTS | M146X3 |
| 7 | Wear Check Thread Plug Gauge(GO & NOGO) | THREAD GAUGE PRODUCTS | M165X2-6g |
| 8 | Wear Check Thread Plug Gauge(GO & NOGO) | THREAD GAUGE PRODUCTS | M178x3-6g |
| PLAIN RING GAUGES | ||||||
|---|---|---|---|---|---|---|
| SL NO | IDENTIFICATION NO | MEASURING INSTRUMENT | RANGE | LEAST COUNT | CALIBRATED DATE | CALIBRATION CERTIFICATE NO |
| 1 | TE-RG-12 | RING GAUGES | Ф65.401 | NA | 13.03.2021 | 13257-11 |
| 2 | TE-RG-13 | RING GAUGES | Ф 70.001 | NA | 13.03.2021 | 13257-12 |
| 3 | TE-RG-14 | RING GAUGES | Ф 95.001 | NA | 13.03.2021 | 13257-16 |
| 4 | TE-RG-15 | RING GAUGES | Ф 90.001 | NA | 13.03.2021 | 13257-15 |
| 5 | TE-RG-16 | RING GAUGES | Ф 117.700 | NA | 13.03.2021 | 13257-1 |
| 6 | TE-RG-17 | RING GAUGES | Ф 55.900 | NA | 06.01.2021 | 1260-002 |
| 7 | TE-RG-18 | RING GAUGES | Ф110.080 | NA | 06.01.2021 | 1260-004 |
| 8 | TE-RG-19 | RING GAUGES | Ф60.400 | NA | 06.01.2021 | 1260-001 |
| WIDTH GAUGES | ||||||
| 1 | TE-91 | WIDTH GAUGES | 1.6H12 +0.14 | |||
| 2 | TE-92 | WIDTH GAUGES | 12.5 +0.2 | |||
| 3 | TE-56.1 | WIDTH GAUGES | 8.0 +0.2 | |||
| 4 | TE-56.2 | WIDTH GAUGES | 11.5 +0.2 | |||
| 5 | TE-56.3 | WIDTH GAUGES | 9.0 +0.25 | |||
| 6 | TE-56.4 | WIDTH GAUGES | 6.3 +0.2 | |||
| 7 | TE-56.5 | WIDTH GAUGES | 12.5 +0.25 | |||
| SNAP GAUGES | ||||||
| 1 | TE-SG-05 | SNAP GAUGE | 65.0+0.16/+0.19 | |||
| 2 | TE-SG-02 | SNAP GAUGE | 70.0-0.06/-0.09 | |||
| 3 | TE-SG-06 | SNAP GAUGE | 65.0-0.10/-0.30 | |||
| TEXEL ENGINEERS LIST OF MONITORING AND MEASURING INSTRUMENTS CALIBRATIONS |
||||||||
|---|---|---|---|---|---|---|---|---|
| SL NO | IDENTIFICATION NO | MEASURING INSTRUMENT | MAKE | RANGE | LEAST COUNT | CALIBRATED DATE | CALIBRATION CERTIFICATE NO |
CALIBRATION DUE DATE |
| 1 | TE-TEC-36 | INTERNAL CALIPER | TECLOCK | 55 TO 135 | 0.01 | 14.07.2021 | 0180F | 13.07.2022 |
| 2 | TE-TEC-38 | INTERNAL CALIPER | TECLOCK | 30 TO 54 | 0.01 | 14.07.2021 | 0181F | 13.07.2022 |
| 3 | TE-98 | INTERNAL CALIPER | INSIZE | 5 TO 25MM | ||||
| SL NO | IDENTIFICATION NO | MEASURING INSTRUMENT | MAKE | RANGE | LEAST COUNT | CALIBRATED DATE | CALIBRATION CERTIFICATE NO |
CALIBRATION DUE DATE |
| 1 | TE-11 | PLUNGER DIAL | MITUTOYO | 0.01-1MM | 0.01 | 19.07.2021 | 0195F | 18.07.2022 |
| 2 | TE-73 | PLUNGER DIAL | BAKER | 0-1MM | LC-0.001 | 15.11.2021 | 0351F | 14.11.2022 |
| 3 | TE-75 | PLUNGER DIAL | INSIZE | 0.01-10MM | LC-0.01 | 15.11.2021 | 0353F | 15.11.2022 |
| 4 | TE-76 | Lever DIAL | MITUTOYO | 0.001 | 15.11.2021 | 0356F | 14.11.2022 | |
| TEXEL ENGINEERS LIST OF MONITORING AND MEASURING INSTRUMENTS CALIBRATIONS |
||||||||
|---|---|---|---|---|---|---|---|---|
| SL NO | IDENTIFICATION NO | MEASURING INSTRUMENT | MAKE | RANGE | LEAST COUNT | CALIBRATION FREQUENCY |
CALIBRATED DATE |
CALIBRATION CERTIFICATE NO |
| 1 | Thread Plug Gauge (GO & NOGO) | THREAD CONTROL SYSTEMS | M48x2-6H | |||||
| 2 | Thread Plug Gauge (GO & NOGO) | SAI | M6x1-6H | |||||
| 3 | Thread Plug Gauge (GO & NOGO) | TGP | M118x2-6H | |||||
| 4 | TE-TPG-94.1 | Thread Plug Gauge(GO & NOGO) | M94x1.5-6H | |||||
| 5 | TE-TPG-85.1 | Thread Plug Gauge (GO & NOGO) | TGP | M85x3-6H | NA | 1 Year | 23.11.2021 | 00391F |
| 6 | Thread Ring Gauge (GO & NOGO) | SIZE MASTERS | M125x2-6g | NA | 1 Year | |||
| 7 | Thread Ring Gauge (GO & NOGO) | SIZE MASTERS | M115x2-6g | NA | 1 Year | |||
| 8 | TE-TPG-146.1 | Thread Ring Gauge (GO & NOGO) | THREAD CONTROL SYSTEMS | M146x3 | NA | 1 Year | 15.11.2021 | 04227F |
| 9 | Thread Ring Gauge (GO & NOGO) | TGP | M178x3-6g | NA | 2 Year | 23.11.2021 | 06458F | |
| TEXEL ENGINEERS LIST OF MONITORING AND MEASURING INSTRUMENTS CALIBRATIONS |
||||||||
|---|---|---|---|---|---|---|---|---|
| SL NO | IDENTIFICATION NO | MEASURING INSTRUMENT | MAKE | RANGE | LEAST COUNT | CALIBRATED DATE | CALIBRATION CERTIFICATE NO | CALIBRATION DUE DATE |
| 1 | TE-BO-23 | SHALLOW BORE GAUGE | MITUTOYO | 50 TO 150 | NA | 15.11.2021 | 0366F | 14.11.2022 |
| 2 | TE-07-BO | BORE GAUGE | MITUTOYO | 35 TO 60 | NA | 14.07.2021 | 0165F | 13.07.2022 |
| 3 | TE-60 | SHALLOW BORE GAUGE | MITUTOYO | 35-60 | NA | 14.07.2021 | 0166F | 13.07.2022 |
| 4 | BORE GAUGE | MITUTOYO | 160 TO 250 | NA | 19.07.2021 | 0201F | 18.07.2022 | |
| 5 | TE-97 | BORE GAUGE | MITUTOYO | 10 TO 18.5MM | NA | 14.07.2021 | 0168F | 13.07.2022 |
| 6 | TE-BO-136 | BORE GAUGE | MITUTOYO | 50-150 | NA | 17.12.2021 | 0405F | 16.12.2022 |
| TEXEL ENGINEERS LIST OF MONITORING AND MEASURING INSTRUMENTS CALIBRATIONS |
||||||||
|---|---|---|---|---|---|---|---|---|
| SL NO | IDENTIFICATION NO | MEASURING INSTRUMENT | MAKE | RANGE | LEAST COUNT | CALIBRATION FREQUENCY | ||

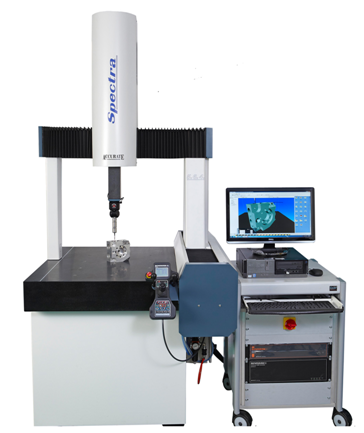

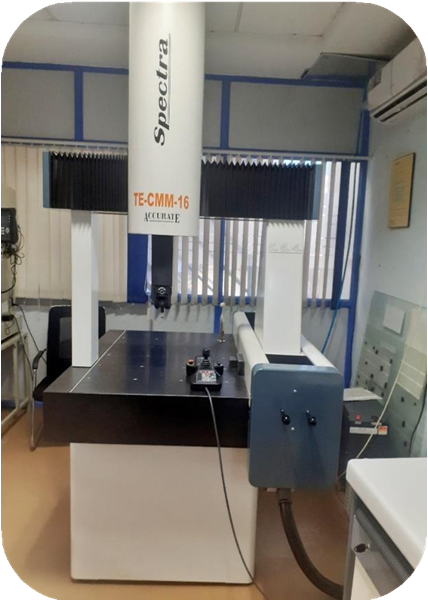

| 1 | TE-CMM-16 | CMM | Spectra Accurate | 0.0001 | 1 YEAR | |||
| 2 | TE-61 | HEIGHT GAUGE | MITUTOYO | 0 TO 300 | 0.01 | 1 YEAR | ||
| 3 | TE-DVC-04 | DIGITAL VERNIER CALIPER | MITUTOYO | 0 TO 300 | 0.01 | 1YEAR | ||
| 4 | TE-79 | DIGITAL VERNIER CALIPER | MITUTOYO | 0 TO 200 | LC-0.01 | 1 YEAR | ||
| 5 | TE-20 | SURFACE TESTER | PRISM GAUGES | |||||
| 6 | TE-BP-01 | BEVEL PROTRACTOR | INSIZE | |||||
| 7 | TE-V-35 | DEPTH VERNIER CALIPER | MITUTOYO | 0 TO 200 | 0.02 | 1 YEAR | ||
| TEXEL ENGINEERS LIST OF MONITORING AND MEASURING INSTRUMENTS CALIBRATIONS |
||||||||
|---|---|---|---|---|---|---|---|---|
| SL NO | IDENTIFICATION NO | MEASURING INSTRUMENT | MAKE | RANGE | LEAST COUNT | CALIBRATED DATE | CALIBRATION CERTIFICATE NO | |
| 1 | TE-DM-18 | DEPTH MICROMETER | MITUTOYO | 0 TO 25 | 0.01 | 14.07.2021 | 0182F | |
| 2 | TE-06 | DIGITAL MICROMETER | MITUTOYO | 50 TO 75 | 0.001 | 14.07.2021 | 0179F | |
| 3 | TE-05 | DIGITAL MICROMETER | MITUTOYO | 75 TO 100 | 0.001 | 14.07.2021 | 0177F | |
| 4 | TE-67 | DIGITAL BLADE MICROMETER | MITUTOYO | 25-50 | LC-0.001 | 15.11.2021 | 0361F | |
| 5 | TE-102 | BLADE MICROMETER | MITUTOYO | 75 TO 100 | 0.01 | 02.08.2021 | 0206F | |
| 6 | TE-BM-24 | BLADE MICROMETER | MITUTOYO | 0 TO 25 | 0.01 | 05.10.2021 | 00283F | |
